HARNESS WIRE CUSTM KIT

I lager

Produktkod

21200769

Special Price 5 552,05 kr‎ Regular Price 6 348,27 kr‎

Tarneaeg: 1 arbetsdag

Saadavus: I centrallagret

Vi skickar: mellan 29.04.2026 och 30.04.2026

Skicka till

Beräkna fraktkostnad

Land

Län

Antal

Beräkna avbetalning

▼

Välj leverantör

Handpenning

€

Lånebelopp: –

Betalningsperiod

24 månader

3 månader 60 månader

Månadsbetalning – €

Produktpris –

Lånebelopp –

Totalt belopp –

Räntekostnad –

Ränta –

Avtalsavgift –

Administrationsavgift –

Max lånebelopp –

Kalkylatorn är informativ. Det slutliga erbjudandet beror på leverantörens villkor och kreditbeslut.

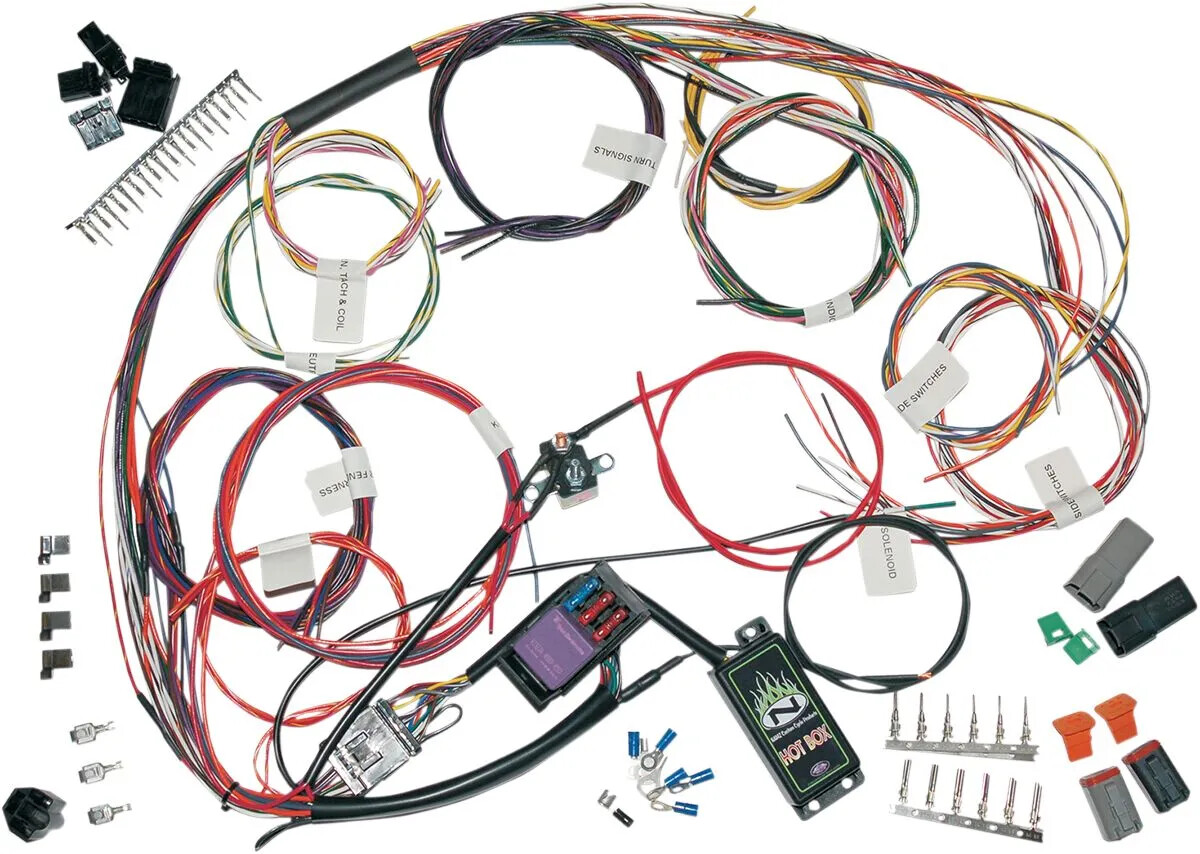

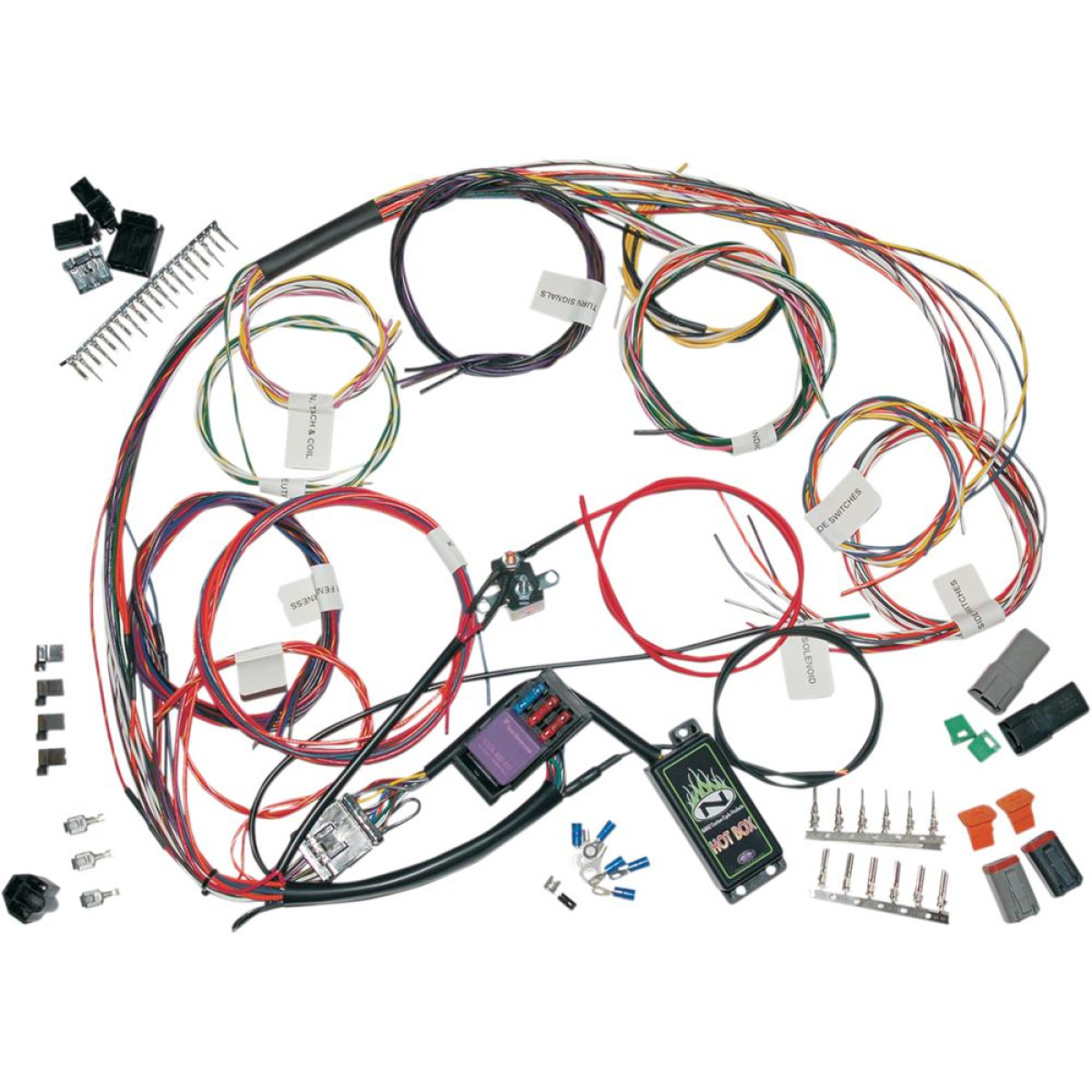

The perfect start for any project bike or OEM model re-wire
Complete bike harness w/ starter relay, 3-circuits, self-canceling and run, brake and turn signal module
Works with any stand alone, Evo or Twin Cam ignition system
Designed to operate with a two-position key switch
Key start switches can be used with a simple wiring modification (ignition system and key switch are not included with this harness)
OEM color-matching harness with 11-second self-canceling turn signal module
Fuse block holds a full size, commonly available and replaceable starter relay and three (3) ATO fuses
A 30-Amp circuit breaker is installed and is ready for any regulator/charging system
Harness provides running light and turn signal functions to the front turn signals, run, brake and turn signal functions for the rear turn signals
Oil, neutral, high beam and turn signal indicator wiring
Color-matching handlebar switch wiring, as found on most '96-'13 models (except Dresser models)
Headlight wiring with headlight socket and terminals
Front turn signal connectors and terminals
Rear fender harness with connectors and terminals
Key switch wiring with ring terminals
Coil wire with ring terminals, tachometer, horn, oil sending unit, brake switch and neutral switch wiring with terminals
Sections of 3/16", 1/4", 3/8" and 1/2" i.d. heat shrink included
Heavy-gauge power and ground wires with terminals for battery connection
Made in the USA

Brand

NAMZ

Vendor Part Number

NCBH-01-A

Product Name

Wiring Harness

Type

Complete

Units

Kit
