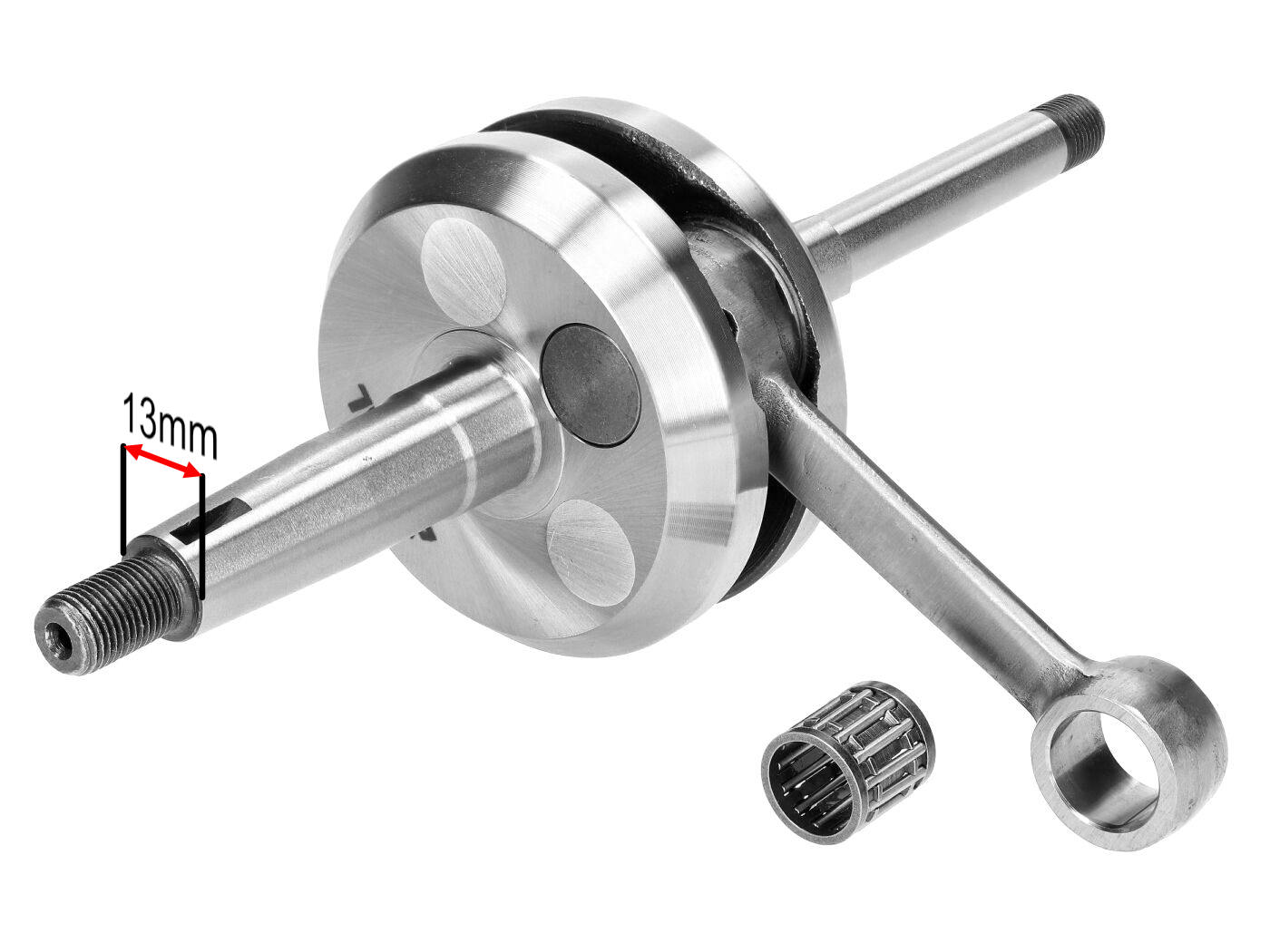

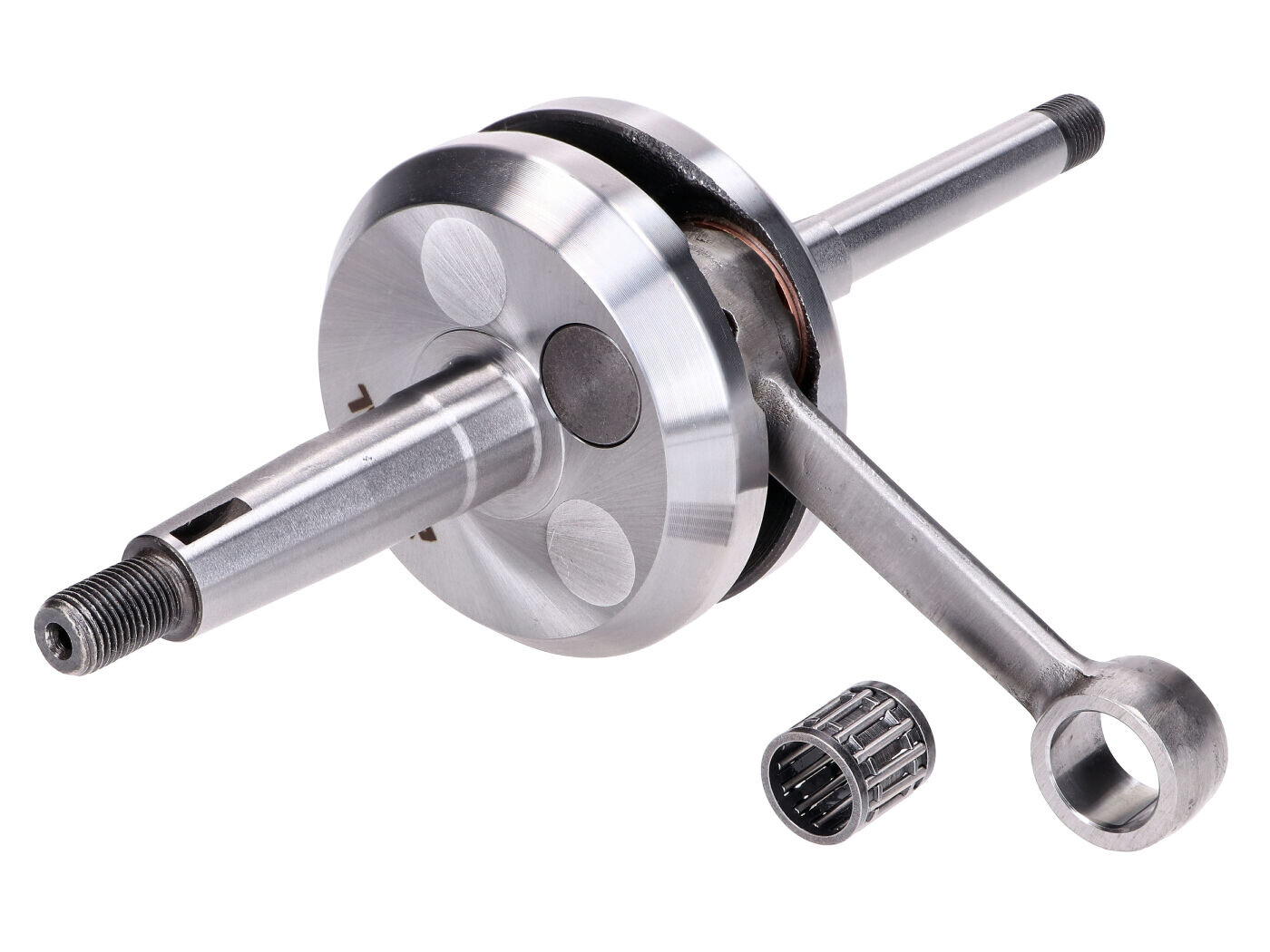

crankshaft Airsal Racing for Peugeot 103

High quality racing crankshaft from Airsal in top quality with 2 additional balance weights suitable for Peugeot 103 moped with large cone for electronic ignition (SP / MVL engine with 50cc cylinder). 40mm diameter.

Stroke and connecting rod length correspond to the original dimensions. Due to the additional weights, this crankshaft is ideal for tuning or racing.

. Technical data:

Stroke: 39.1mm

Total length ignition side cheek pin: 70mm

.

Total length clutch side cheek pin: 97.8mm

.

Diameter 1st shoulder (coupling side cheek pin): 22mm

Diameter 2nd shoulder (coupling side cheek pin): 10mm

Thread on ignition side: M10x1

Thread on clutch side: M11x1

The scope of delivery includes a reinforced needle bearing 12x15x15mm.
